Features

Front-facing dual infrared sensor eyes (ON and OFF)
Manual ON/OFF override 'touch' button
Solid construction 'curve-neck' design sensor tap
Doudle supply (Hot and Cold supplies)
Temperature control lever
Mains/4XAA Alkaline batteries (up-to 2yr lifespan)
Hands free infrared activation
Exquisite curve-style design
Finish: Chrome-plated
Flexible supply hoses supplied

Special Notes:Water pressure:
Water pressure range: 0.75 (Min) - 7 Bar (Max) (1 bar or above for best performance)

Video Demo:
Watch a video demo here

QUICK VISUAL DATA

This sensor tap can be powered by both Mains (AC) and Batteries (DC)	This sensor tap comes with double (hot and cold) water supply feeds	30-35mm	The control box for this sensor tap has a separate 'plug-in' transformer



TECHNICAL DETAILS

Diameter of 'inlet' pipe: G1/2”
Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Sensing distance: 6-27cm
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4x AA alkaline batteries (up-to 2-year lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

Power Options

DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)

AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.

TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.

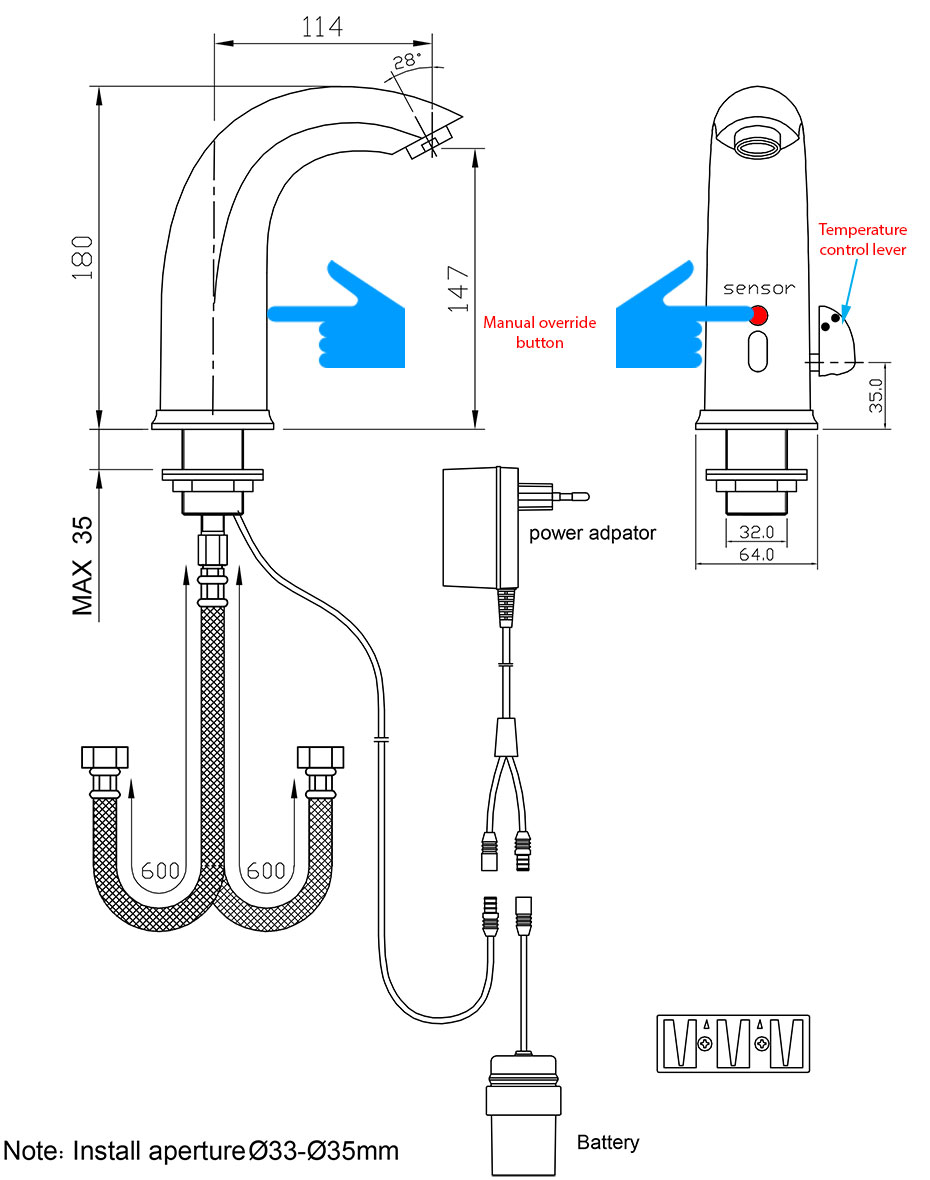

DIMENSION:



CONTENTS

1x Sensor Tap
4x AA Alkaline Batteries (Subject to availability)
2x Flexible G1/2" *600mm 'hot & cold' Connection Hoses
1x Transformer
1x Battery box
Fittings and Screws

ON/OFF Override 'touch' Button

Dual SENSOR override button

Video Demo:
Watch a video demo here
