Features

Dual infrared sensor eyes (ON and OFF)
Solid construction 'square-pillar' design
Single supply sensor tap
Mains/4XAA Alkaline batteries (up-to 2yrr lifespan)
Hands free infrared activation
Exquisite pillar-style design
Solid brass construction
Flexible supply hose

Special Notes:Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Video Demo:
Watch a video demo here

QUICK VISUAL DATA

This sensor tap can be powered by both Mains (AC) and Batteries (DC)	This sensor tap comes with a single water supply feed	30-35mm	The control box for this sensor tap has a separate transformer with an exposed positive & negaitive cable



TECHNICAL DETAILS

Diameter of 'inlet' pipe: G1/2”
Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Sensing distance: 6-27cm
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4x AA alkaline batteries (up-to 2-year lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

Power Options

DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)

AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.

TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.

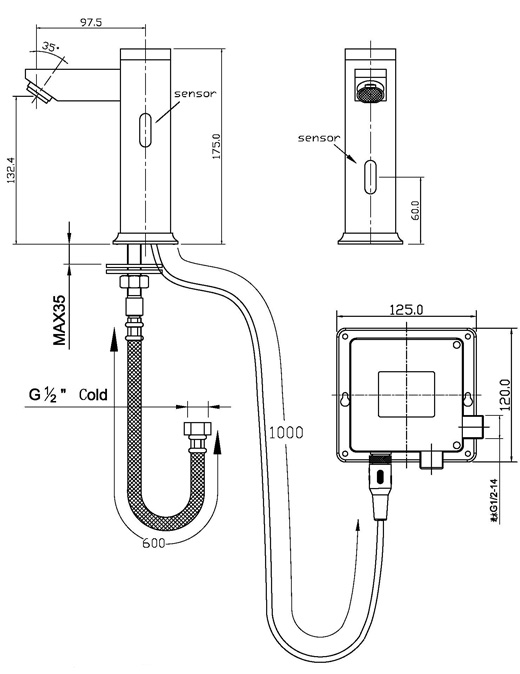

DIMENSION:



CONTENTS

1x Sensor Tap
1x Control Box (*battery compartment inside)
4x AA Alkaline Batteries (Subject to availability)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer
Fittings and Screws

ON/OFF Override 'touch' Button

Dual SENSOR override button

Video Demo:
Watch a video demo here

Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Temperature control:

This sensor tap is designed to be supplied with pre-mixed water. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device. See images below

Manual blending valve:
ABV-0012
Water temperature is controlled manually.

Thermostatic mixer valves:
ATV-9004B
ATV-9004C
ATV-9004
Water temperature is regulated automatically.



Model: ATV-9004C Price: £79.99 Buy now	Option 1: ATV-9004C This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.
Model: ATV-9004B Price: £89.99 Buy now	Option 2: ATV-9004B     This thermostat has a 'wall-mounting' bracket that can be mounted on the wall or at a different location linked to the control box via a connecting pipe or a flexible hose (not supplied)
Model: ATV-9004	Option 3: ATV-9004     This thermostat is a plain design without any wall bracket or female outlet connector like ATV-9004C. It can be linked to a control box or sets of control boxes via a connecting pipe or a flexible hose (not supplied)
Model: ABV-0012 Price: £19.99 Buy now	Option 4 : ABV-0012     This is a manual blending valve only. There's no thermostatic mixing element inside, any desired temperature can only be achieved manually by turning the knob clockwise or anti-clockwise.
	ATV-9004B thermostat: Multi-box Installation     A maximum of three (3) sensor taps/control boxes can run using one thermostatic mixer valve as shown above. Ensure that each (hot/cold) mains water supply is at least 2.0 bars.
