Model: ATV-9004C
Price: £79.99
Buy now

Option 1: ATV-9004C

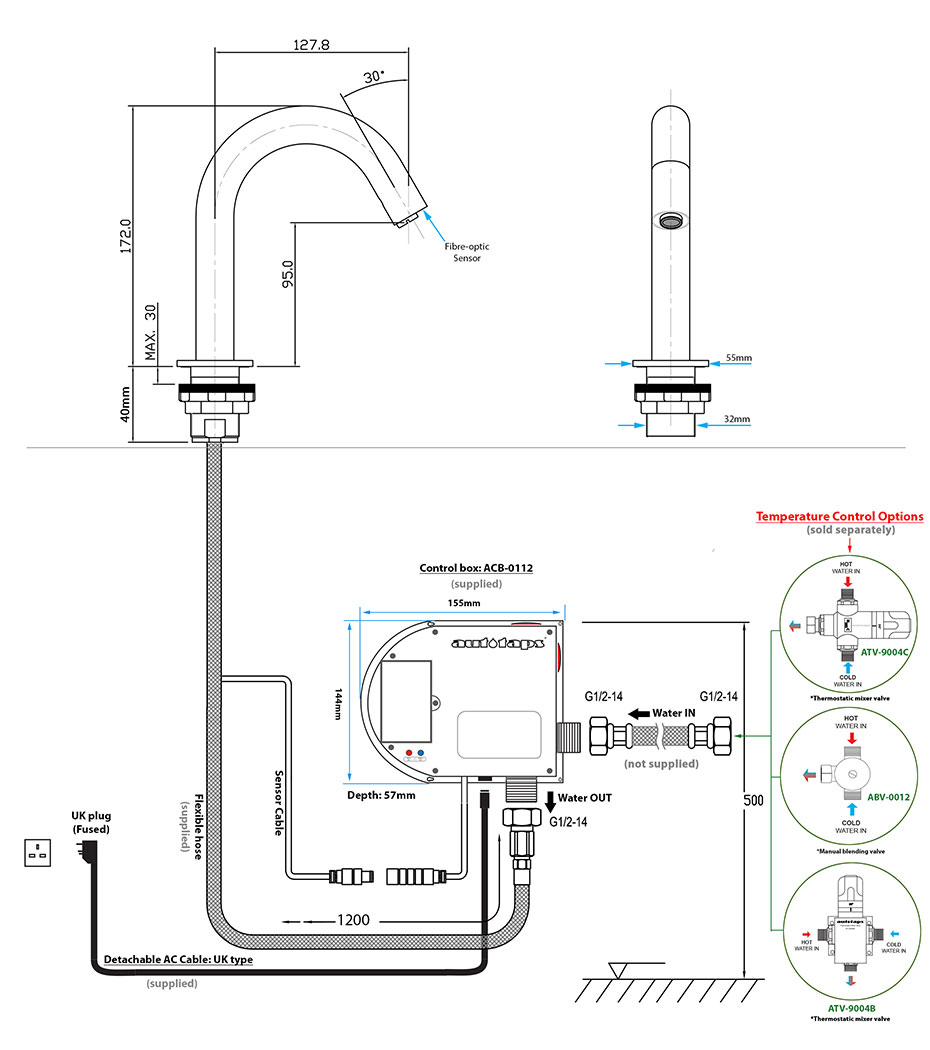

This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.

Model: ATV-9004B
Price: £89.99
Buy now

Option 2: ATV-9004B

This thermostat has a 'wall-mounting' bracket that can be mounted on the wall or at a different location linked to the control box 'inlet' via a connecting pipe or a flexible hose (not supplied)

TIP:
You can run three (3) sensor taps (maximum) with one thermostatic. Water pressure of both hot and cold supplies must be at least 3 bar.

Model: ABV-0012
Price: £19.99
Buy now

Option 4 : ABV-0012

This is a manual blending valve only, adjustable by hand. There's no thermostatic mixing element inside. Any desired temperature can only be achieved 'manually' by turning the knob clockwise or anti-clockwise by hand.

Sold separately

FLUSH/RUN Water: Flow Time Increase
When this button is pressed once, it will increase water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ increment.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases water flow time by 5s. For example, press 1 time =5s, press 2 times= 10s, 3 times= 15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the tap to run for 10 seconds,  press this key once and let it register (which equals 5s) and press it again the second time to increase it from 5s to 10s and so on.

FLUSH/RUN Water: Flow Time Decrease
When this button is pressed once, it will decrease water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ decrement.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light flashes 3 times. Each key press will decreases water flow time by 5s. For example, press 1 time =-5s, press 2 times= -10s, 3 times= -15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the flow time to be decreased by 10 seconds,  press this key once and let it register (which equals -5s) and press it again the second time to decrease it from 10s to 5s and so on.

Increase Sensor Distance
This button will increase the sensor distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Decrease Sensor Distance
This button will decrease the sensor proximity distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 2 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Auto Search
This button allows the 'automatic' settings of the sensor proximity sensor range.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 5 LED light flashes. During these flashes, the sensor will auto-calibrate itself and adjust its infrared distance settings in accordance with environment.

This button can also be used to set the sensor distance manually.
For example, once this button is pressed, place hand/object at desired position/distance where you want sensor range to end and it will automatically calculate the distance from sensor module to hand/object.

6. Water ON/OFF
When this button is pressed, it will open the valve and let water flow, and when it’s pressed again - the valve will close and water will stop (ON and OFF activation).
But once activated and the button is not pressed - water will continue to run for ‘120 seconds’ then it will shut OFF or close the valve automatically.

Note:
This function can be intercepted or interrupted at any time, for example; if the button is pressed and after, for example 30s, the button can be pressed to close the valve.
