Short curve neck design deck-mounted infra red sensor tap



  • Features
  • Technical Details
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control



Features

Small curve neck design sensor tap
Solid brass construction design
Finish: Chrome-plated
Single supply
Power Options: Mains/4XAA Alkaline batteries (up-to 2yr lifespan)
Hands free infrared activation
Flexible supply hose
New control box design: ACB-0112
Water pressure required: 0.75-7 Bar (1 bar or above for best performance)

Control box type: ACB-0112

New control box: ACB-0112


Special Notes:Water pressure:
Water pressure range: 0.75 (Min) - 7 Bar (Max) (1 bar or above for best performance)

QUICK VISUAL DATA

AC+DC Power only Single supply feed Drilling a hole? UK Plug
Sensor tap can be powered by both Mains (AC) and Batteries (DC) Sensor tap comes with a single water supply feed 30-35mm Control box for this sensor tap is supplied with detachable UK 'fused' plug




TECHNICAL DETAILS

Control box: Diameter of 'inlet' pipe: G1/2”
Control box: Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3mW
Sensing distance: 6-24cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (up-to 2yr lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

Power Options

DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)

AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.

TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.

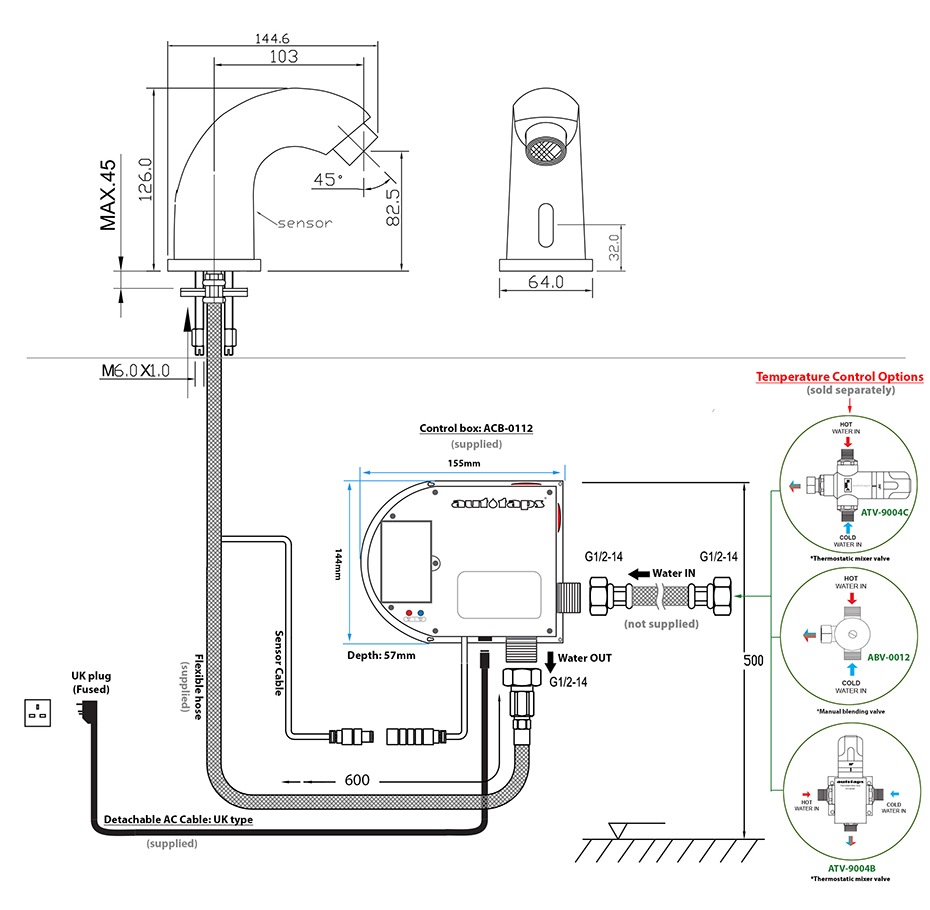

DIMENSION:

ATS-2015 dimension

Control box Features

Front View

Control box features



Back View

Control box back view







CONTENTS

1x Sensor Tap
1x Control Box (*battery compartment inside)
1x AC cable (UK plug)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer (Built inside control box)
1x Control box 'wall-mounting' clip
Fittings and Screws


Nothing to display.




Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Temperature control:

This sensor tap is designed to be supplied with pre-mixed water.
Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device.
See images below.

Manual blending valve:
ABV-0012
Water temperature is controlled manually.

Thermostatic mixer valves:
ATV-9004B
ATV-9004C
Water temperature is regulated automatically.

Frequently asked question:


Question:
What's difference between 'ATV-9004B' and 'ATV-9004C'?

Answer:
They're litterally both the same thing, except for only one difference.
ATV-9004B has a 'wall-mounting' brackets attached to it, while ATV-9004C has a 'female' connection end, which can be connected directly to a control box 'inlet' as shown below.



ATV-9004C

Model: ATV-9004C
Price: £79.99
Buy now

Option 1: ATV-9004C

ATV-9004C Setup

This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.

ATV-9004B



Model: ATV-9004B
Price: £89.99
Buy now


Option 2: ATV-9004B



ATV-9004B Setup



This thermostat has a 'wall-mounting' bracket that can be mounted on the wall or at a different location linked to the control box 'inlet' via a connecting pipe or a flexible hose (not supplied)

TIP:
You can run three (3) sensor taps (maximum) with one thermostatic. Water pressure of both hot and cold supplies must be at least 3 bar.

ABV-0012



Model: ABV-0012
Price: £19.99
Buy now



Option 4 : ABV-0012



ABV-0012 SetupABV-0012



This is a manual blending valve only, adjustable by hand. There's no thermostatic mixing element inside. Any desired temperature can only be achieved 'manually' by turning the knob clockwise or anti-clockwise by hand.







Infrared Remote Control: IRC-6.13



IRC-6.13 Sensor remote control

Sold separately

Flow time increase

FLUSH/RUN Water: Flow Time Increase
When this button is pressed once, it will increase water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ increment.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases water flow time by 5s. For example, press 1 time =5s, press 2 times= 10s, 3 times= 15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the tap to run for 10 seconds,  press this key once and let it register (which equals 5s) and press it again the second time to increase it from 5s to 10s and so on.
Flow time decrease

FLUSH/RUN Water: Flow Time Decrease
When this button is pressed once, it will decrease water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ decrement.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light flashes 3 times. Each key press will decreases water flow time by 5s. For example, press 1 time =-5s, press 2 times= -10s, 3 times= -15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the flow time to be decreased by 10 seconds,  press this key once and let it register (which equals -5s) and press it again the second time to decrease it from 10s to 5s and so on.

Sensor increase

Increase Sensor Distance
This button will increase the sensor distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Sensor decrease

Decrease Sensor Distance
This button will decrease the sensor proximity distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 2 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Auto Search button

Auto Search
This button allows the 'automatic' settings of the sensor proximity sensor range.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 5 LED light flashes. During these flashes, the sensor will auto-calibrate itself and adjust its infrared distance settings in accordance with environment.

This button can also be used to set the sensor distance manually.
For example, once this button is pressed, place hand/object at desired position/distance where you want sensor range to end and it will automatically calculate the distance from sensor module to hand/object.

Stand-by button

Standby
This button will put the sensor on standby or 'inactive' mode. This is particularly useful if the tap needs cleaning or simply trying to put the sensor tap 'out of action' during holiday period. When this mode is active, the sensor will not respond to any interaction with it until it's switched ON again.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light comes on and stays on for 2-3 seconds and then goes off, standby mode is now active.

To disable, press once, LED light comes on and stays on for 2-3 seconds ‘twice’ and then goes off. Standby mode is now disabled.
