Sensor shower kit



  • Features
  • Technical Details
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Add-ons



Features

DIY Retro-fit Installation
Dual sensor
Square sensor plate
Single supply
Mains/4XAA Alkaline batteries (Up to 2-Year lifespan)
Hands free infrared sensor activation

Sensor shower plate only (Shower head or temperature control not included)

TIP:
The temperature control from an existing shower component will be sufficient to regulate 'hot' and 'cold' water supply before it gets the shower head.

Special Notes:Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)




TECHNICAL DETAILS

Diameter of 'inlet' pipe: G1/2”
Diameter of 'inlet' pipe: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: AC/DC6V
Power consumption: =0.3MW
Sensing distance: 27-31cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (2 years)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C

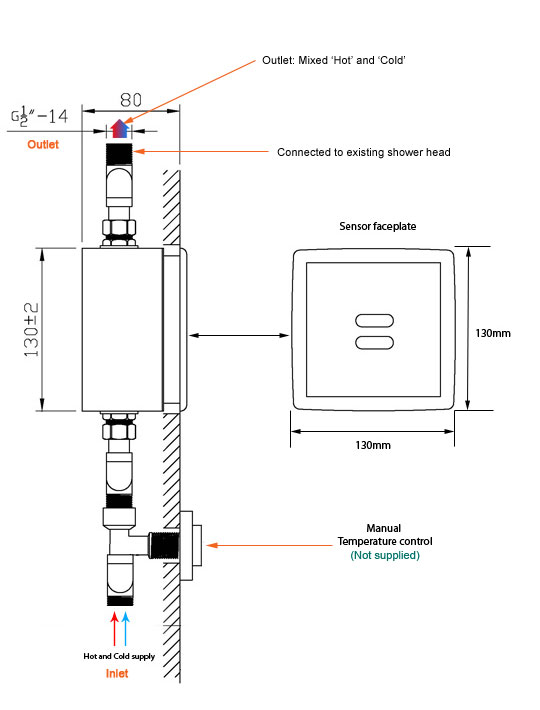

DIMENSION:

Sensor shower





CONTENTS

1x Sensor Shower Plate
1x Control Box (*battery compartment inside)
4x AA Alkaline Batteries (Subject to availability)
1x Transformer
Fittings and Screws
