Features

Wall mounted sensor tap
Integrated infrared sensor circular frame
With integrated manual temperature control knob
Conserve water and Hygienic
Mains and Battery-operated (AC+DC)
Hands free infrared activation
Exquisite and stylish design
Solid-brass construction

Note:
The control box for this model is attached to the outer sensor housing 'circular frame' unit.
No flexible hoses supplied

Special Notes:Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

QUICK VISUAL DATA

This sensor tap can be powered by Mains (AC) only	This sensor tap comes with a double water supply feeds	N/A	The housing unit/control box for this sensor tap has a separate transformer with an exposed positive & negaitive cable



TECHNICAL DETAILS

Diameter of 'inlet' connections (hot and cold): G1/2” male
Diameter of 'outlet' flexible pipe (inside the control box): G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage (AC only): AC 220V-240V (6V Output)
Power consumption: =0.3MW
Sensing distance: 17-31cm
Respond time: 1 Second
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

Power Options

DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)

AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.

TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.

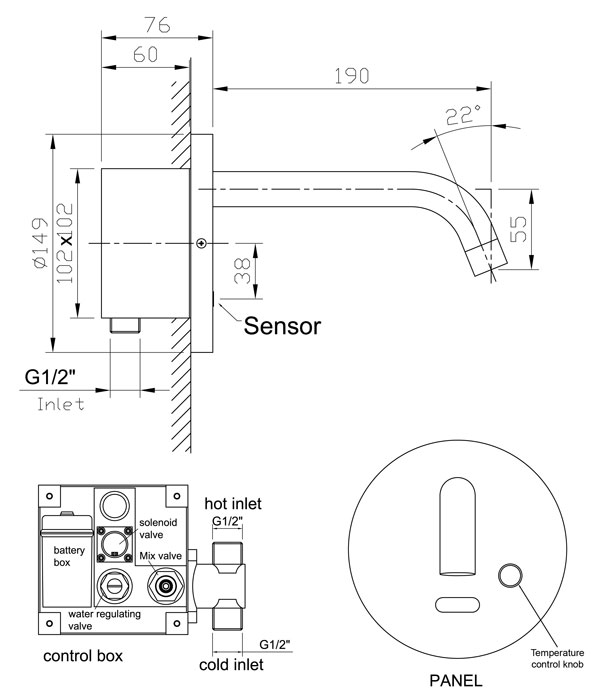

DIMENSION:

CONTENTS

1x Curve-neck Tap

1x Sensor Plate
1x Control Box (*battery compartment inside)
4x AA Alkaline Batteries **supplied only with DC version (Subject to availability)
1x Transformer (*supplied only with AC version)
1x Temperature control knob
