Features

Monobloc 'Pillar' design sensor tap
Single supply
Buil-in solenoid valve
DC ONLY: 4XAA Alkaline batteries (Up to 2-Year lifespan)
Hands free infrared activation
Exquisite and stylish 'pillar-style' design
Solid brass construction
Finish: Chrome-plated
Flexible supply hose

Special Notes:Water pressure:
Water pressure range: 0.75 (Min) - 7 Bar (Max) (1 bar or above for best performance)

QUICK VISUAL DATA

This sensor tap can only be powered by Batteries (DC)	This sensor tap comes with a single water supply feed	30-35mm



TECHNICAL DETAILS

Water pressure range: 0.75 (Min) - 7 Bar (Max)
Voltage: DC6V only
Power consumption: =0.3mW
Sensing distance: 6-24cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (up-to 2yr lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated

Power Options

DC only= Direct Current (Battery source)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

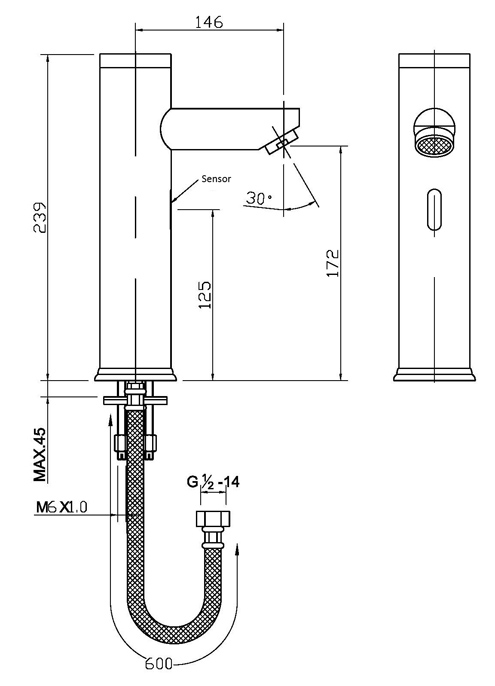

DIMENSION:

CONTENTS

1x Sensor Tap (*battery compartment inside tap's body)
4x AA Alkaline Batteries (Subject to availability)
1x Flexible G1/2" *600mm Connection Hose

Nothing to display.



Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Temperature control:

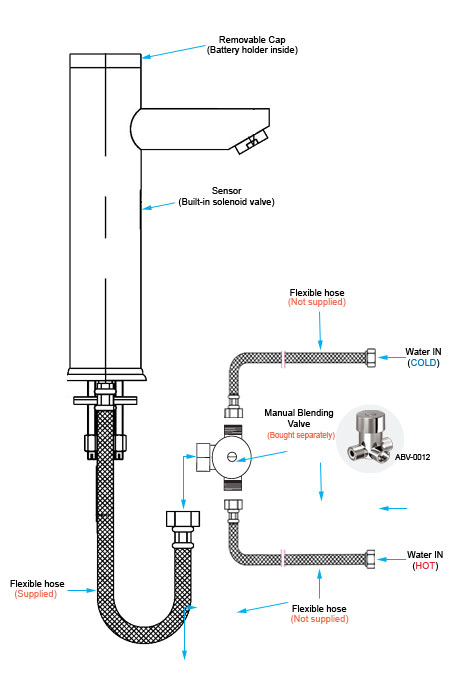

This sensor tap is designed to be supplied with pre-mixed water. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device. See images below.

Manual blending valve:
ABV-0012
Water temperature is controlled manually.

Thermostatic mixer valves:
ATV-9004B
ATV-9004C
ATV-9004
Water temperature is regulated automatically.
