Features

Ralph O'Wallaby Designer sensor tap
Stylish Goose-neck design
Solid brass construction design
Unique waterfall effect
Single supply
Mains/4XAA Alkaline batteries (Up to 2-Year lifespan)
Hands free infrared activation
Flexible supply hose

Special Notes:Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

QUICK VISUAL DATA

This sensor tap can be powered by both Mains (AC) and Batteries (DC)	This sensor tap comes with a single water supply feed	30-35mm	The control box for this sensor tap has a separate transformer with an exposed positive & negaitive cable

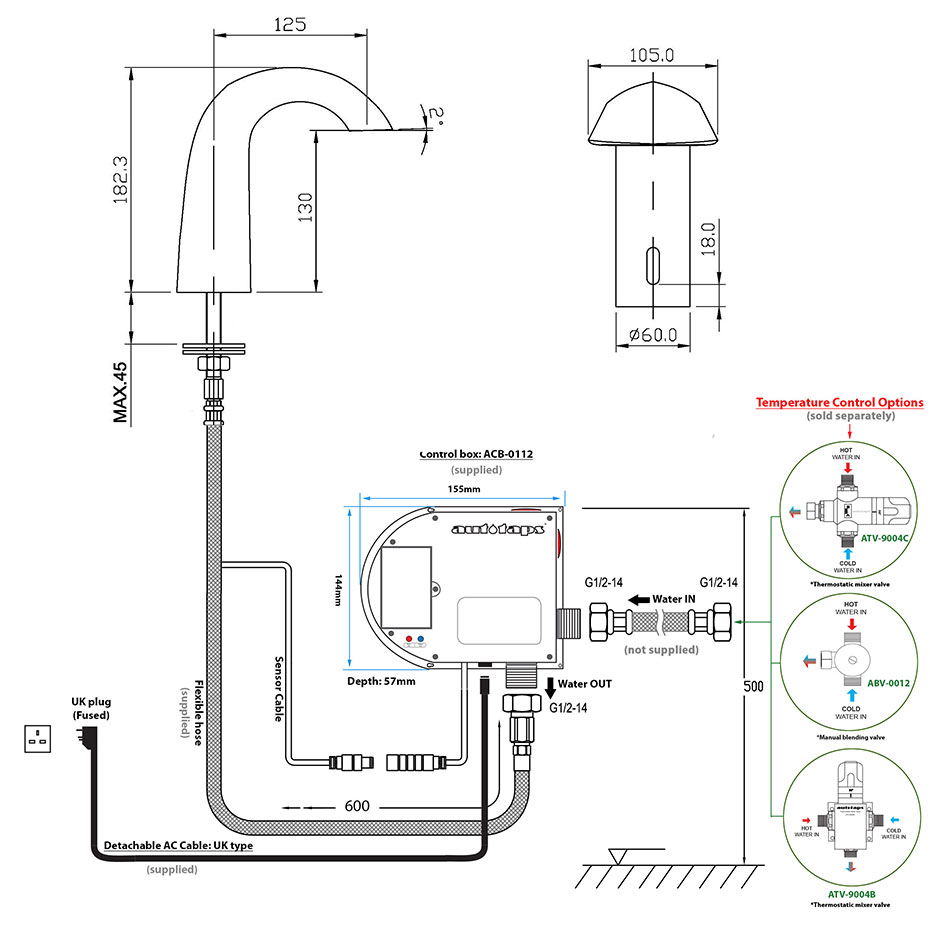

TECHNICAL DETAILS

Diameter of 'inlet' pipe: G1/2”
Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 7L/Per minute
Pipe Threading: British Standard Whitworth (BSW)
AC+DC Power: This sensor tap can be powered by either Mains or battery or both (This means that in case of a power cut, it will automatically switch to battery)

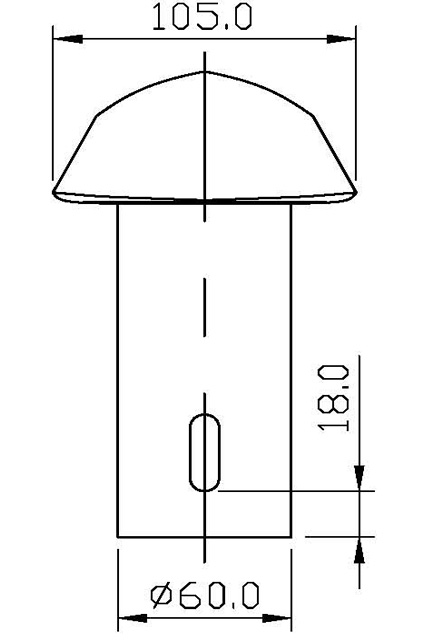

DIMENSION:







CONTENTS

1x Sensor Tap
1x Control Box (*battery compartment inside)
4x AA Alkaline Batteries (Subject to availability)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer
Fittings and Screws



Nothing to display.

Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)

Temperature control:

This sensor tap is designed to be supplied with pre-mixed water.
Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device.
See images below.

Manual blending valve:
ABV-0012
Water temperature is controlled manually.

Thermostatic mixer valves:
ATV-9004B
ATV-9004C
Water temperature is regulated automatically.

Frequently asked question:

Question:
What's difference between 'ATV-9004B' and 'ATV-9004C'?

Answer:
They're litterally both the same thing, except for only one difference.
ATV-9004B has a 'wall-mounting' brackets attached to it, while ATV-9004C has a 'female' connection end, which can be connected directly to a control box 'inlet' as shown below.



Model: ATV-9004C Price: £79.99 Buy now	Option 1: ATV-9004C This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.
Model: ATV-9004B Price: £89.99 Buy now	Option 2: ATV-9004B     This thermostat has a 'wall-mounting' bracket that can be mounted on the wall or at a different location linked to the control box 'inlet' via a connecting pipe or a flexible hose (not supplied) TIP: You can run three (3) sensor taps (maximum) with one thermostatic. Water pressure of both hot and cold supplies must be at least 3 bar.
Model: ABV-0012 Price: £19.99 Buy now	Option 4 : ABV-0012     This is a manual blending valve only, adjustable by hand. There's no thermostatic mixing element inside. Any desired temperature can only be achieved 'manually' by turning the knob clockwise or anti-clockwise by hand.
