Features

Pillar design sensor tap
Easy installation
Manual blending valve built-in
Manual temperature control lever
Hygienic and upto 70% water conservation
Power: 4XAA Alkaline batteries (external)
Hands free and reliable infrared activation technology
Solid brass construction
Finish: Chrome-plated
2x flexible supply hoses

Sensor Remote Control Compatibility

This sensor tap is compatible with SR6.12 sensor remote control (Sold separately)
Check the 'Add-ons' tab above for more details

QUICK VISUAL DATA

This sensor tap can only be powered by Batteries (DC) only	This sensor tap comes with double water supply feeds	35-38mm



Gravity-fed water supply users:

You'll need at least 0.75 bar of equal pressure from both hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.



TECHNICAL DETAILS

Diameter of 'inlet' flexible hoses: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (Up to 2 years lifespan based on 100 times a day)
Silent Consumption: <=0.5mW(DC)
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

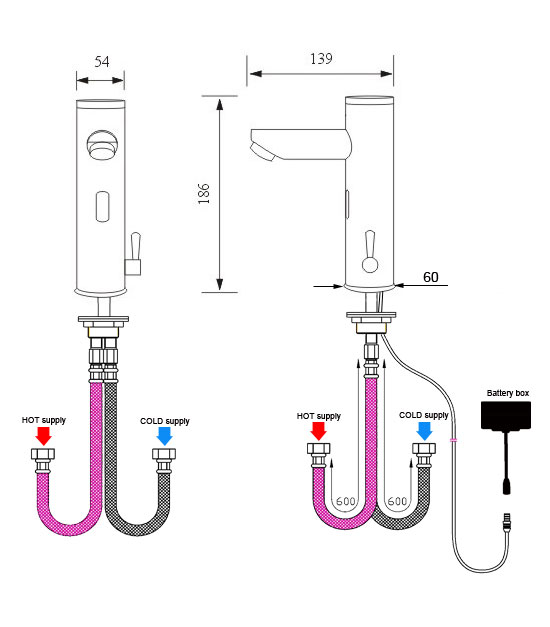

DIMENSION:

CONTENTS

1x Sensor Tap
1x Battery Box (*external battery box)
4x AA Alkaline Batteries (*Subject to availability)
2x Flexible G1/2" *600mm Connection Hoses
Fittings and Screws

Nothing to display.

GRAVITY-FED WATER SUPPLY USERS:

You'll need at least 0.75 bar of equal pressure from both hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.

6-keys Sensor Tap Remote Control





SR6 SENSOR REMOTE CONTROL

At Autotaps, we recognise that sensor taps are installed in different environment and catered for different applications. So it’s paramount for end-users to be able to customize and change settings to suit their needs.

Autotaps SR6-12 6-keys remote control (sold separately) allows end-users/engineers to adjust/customize various settings relating to a ‘compatible’ sensor tap from its default factory settings. This adds added convenience and usability to give better customer experience.

Features Explained

	This button let's water run continuously. When this button is pressed, water will continue to run for approximately '60 seconds' and it will shut OFF automatically. This operation can be interrupted (ON/OFF) by simply pressing the button again. This button is useful when washing plates, vegetables or filling up the kettle.
	This button increases the sensor distance or induction zone. When this button is pressed, the sensor distance will be increased by approximately 2cm on each key press.
	This button decreases the sensor distance or induction zone. When this button is pressed, the sensor distance will be decreased by approximately 2cm on each key press.
	This button puts the sensor on 'stand-by' or 'inactive' mode. This is particularly useful if the tap needs cleaning or simply putting the sensor tap 'out of action' during a holiday period. When this mode is active, the sensor will not respond to any interaction with it until it's switched ON again.
	This 'auto search' button allows 'automatic' resettings of the sensor. When this button is pressed, the sensor will 'auto calibrate' itself and adjust its infra red settings in accordance with the environment. This button can also be used to set the sensor distance manually, more information can be found here
	This button flushes the system by opening up the solenoid valve and allowing water to flow through. This operation last for or between 4-6 seconds, and it will automatically switch OFF afterwards. This option is particularly useful at hospitals/health centres where hygienic flushing of the system is regularly required.



Learn more about this sensor tap remote control
