Features

Stylish Swan-neck design sensor tap
360 degree swivel-neck design
Ceramic mixing valve
Easy installation
Manual blending valve built-in
Manual temperature control lever
Hygienic and up to 70% water conservation
DC powered only: 4x AA batteries (already installed)
Hands-free reliable infrared activation technology
Exquisite and stylish design
Solid brass construction
2x flexible supply hoses

QUICK VISUAL DATA

This sensor tap can only be powered by 4x AA batteries only	This sensor tap comes with double water supply feeds	35mm



Gravity-fed water supply users:

You'll need at least 0.75 bar of equal pressure from both hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.



TECHNICAL DETAILS

Diameter of 'inlet' flexible hoses: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V only
Power consumption: =0.3MW
Sensing distance: 10-27cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

Downloadable Manual: ATT-1103 Manual

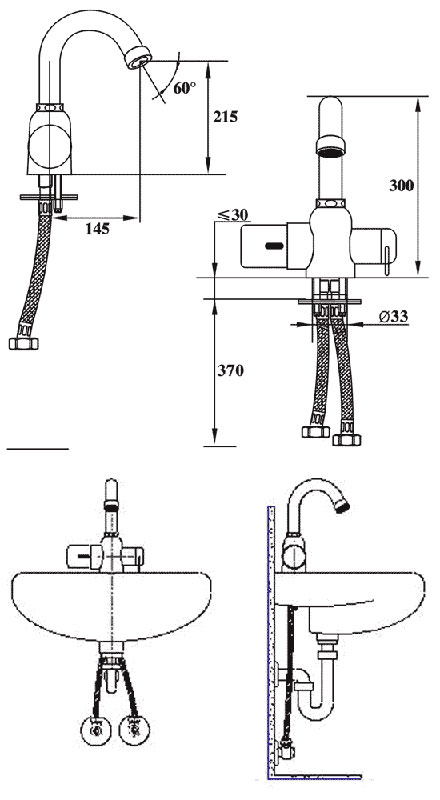

DIMENSION:



CONTENTS

1x Sensor Tap
4x AA batteries (already installed)
*** The battery is located inside the tap's body
2x Flexible G1/2" *500mm Connection Hoses
2x Non-return valves
Fittings and Screws

Nothing to display.

GRAVITY-FED WATER SUPPLY USERS:

You'll need at least 0.75 bar of equal pressure from both hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.
